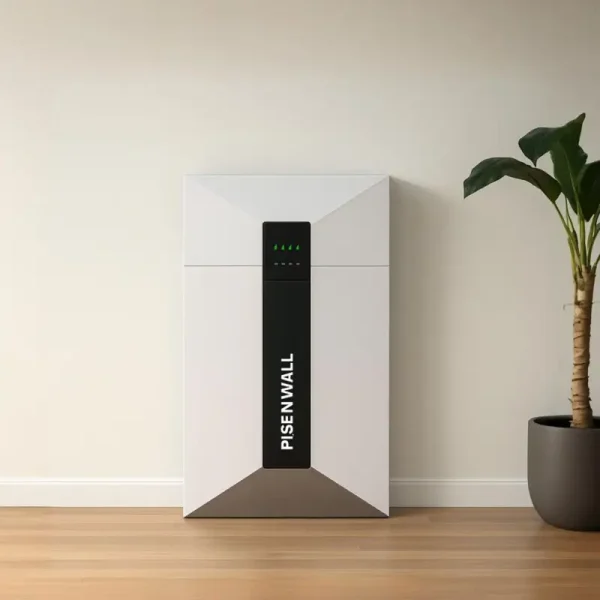

All‑in‑One Hybrid ESS
• High power MPPT design
• Maximum 200/10kw charge/discharge capability
• UPS level switching speed
• 14.33kWh of power, providing a whole day’s powerfor the family
• Parallel‑ready, plug‑and‑play, <30‑minute installation
• Three-level protection for cells, battery packs and system
Product Detail
| Models | OF3K23016S00 | OF6K23016S00 | OF10K23016S00 | TS-HES6K23016500 |
|---|---|---|---|---|
| Off-grid output | ||||
| Rated output power | 3600W | 6000W | 10000W | 6000W |
| Peak power | 7200W | 12000W | 20000W | 12000W |
| Rated output voltage | 230Vac (220/240Vac configurable) | |||
| Output frequency range | 50Hz±0.3Hz / 60Hz±0.3Hz | |||
| Switching time | 10ms (typical value) | |||
| On-grid output | ||||
| Rated output power | not support | 6000W | ||
| Maximum output power | not support | 6000W | ||
| Maximum output current | not support | 24A | ||
| Total harmonic voltage | not support | <3% linear load | ||
| Total harmonic current | not support | <3 | ||
| Power factor | not support | 1 | ||
| Battery | ||||
| Battery type | LiFePO4 | |||
| Series-union relation | 1651P | |||
| Rated capacity | 280Ah | |||
| Factory voltage | 51.2V – 53V | |||
| Discharge termination voltage | 40V | |||
| Charging voltage | 57.6V | |||
| Maximum charging current allowed | 200A | |||
| Photovoltaic input | ||||
| MPPT route | 1 | 1 | 2 | 2 |
| Maximum input power | 4000W | 6000W | 10000W | 4500W*2 |
| Maximum input current | 27A | 27A | 27A | 16A |
| Photovoltaic input (continued) | ||||
| MPPT tracking efficiency | >99% | |||
| Maximum efficiency of mains charging | 0.92 | |||
| Basic parameter | ||||
| Number of parallel machines | 1~6 | |||
| Size | 1350×710×240mm | |||
| Weight | 125kg (309 lb) | |||
| Protection Class | IP52 | |||
| Operating temperature range | -10~55℃ | |||
| Humidity range | 5% – 95% | |||
| Noise | ≤60dB | |||
| Warranty period | 5 years | |||
| Built-in port | RS485 / CAN / Dry contact | |||
| External module (optional) | Wi-Fi / GPRS | |||
